Parksafe/Haodi Wireless Parking Sensors.PN: 02-KF408 (Copy)
Parksafe/Haodi Wireless Parking Sensors
Unique Wireless System Suitable for Front or Rear Parking
Very easy to install as no cables have to be run through the firewall for a much easier, safer and faster installation.
This wireless front or rear sensor kit includes:
4 x 22mm Painted black plastic sensors with male RCA connectors
4 x Sensor cables with AV/RCA type plug-in joiners
1 x LCD colour display unit shows object distance and direction ,battery voltage and driving speed (GPS inside)

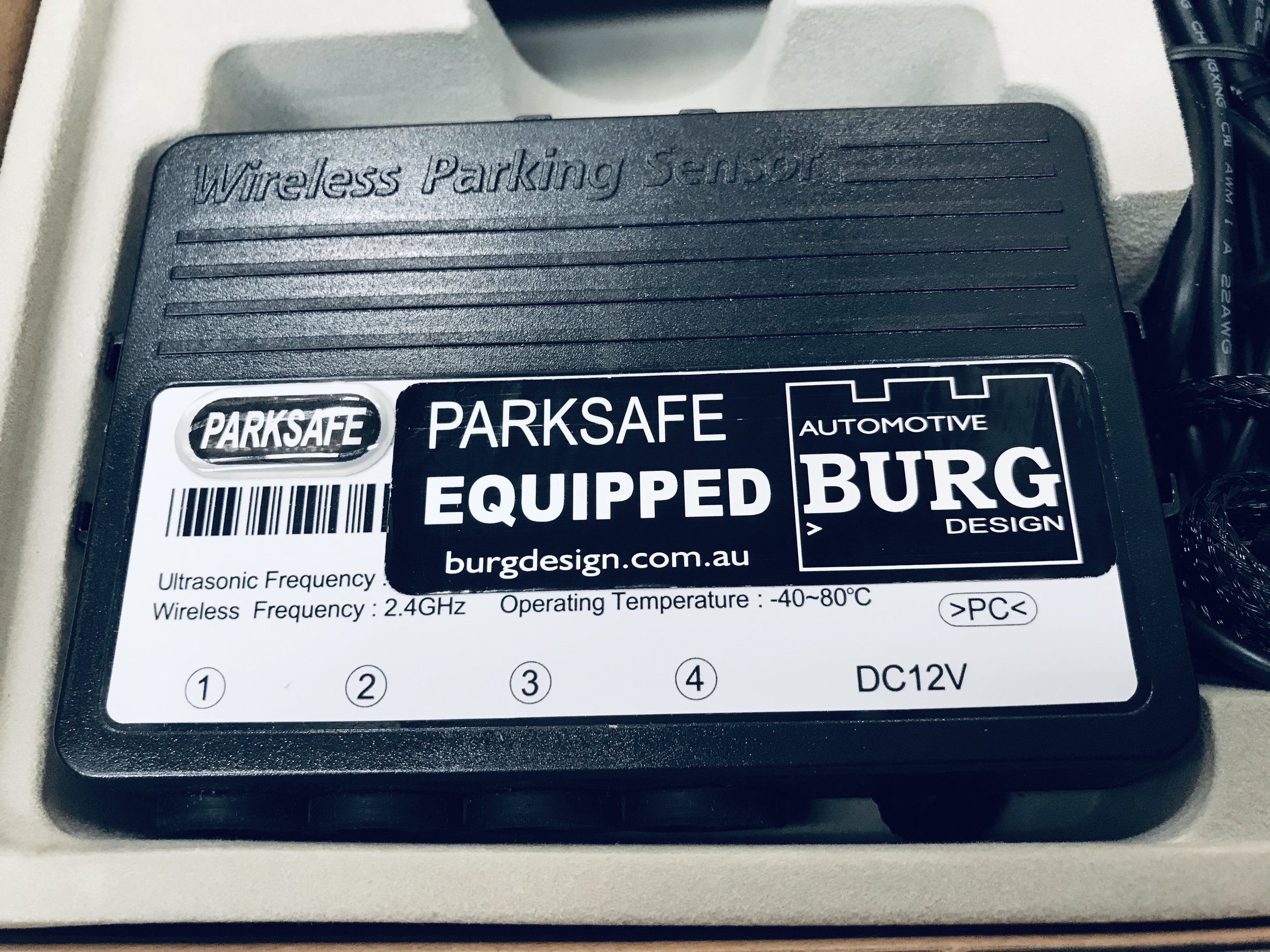

1 x Wireless waterproof VPC/ECU/DC 12V
> GPS on/off speed controlled auto switching (on at below 15 kph/off above 15 kph)
> Battery voltage display
> Adjustable buzzer with volume control
> On/off service switch
> Optional rubber grommets are available for installing into metal bumpers
> Available in White /Silver /Matt Black
> 3 years local Manufacturer Warranty & support
> Fast & easy installation in less than 1 hour
Mount the waterproof ecu/control module in the engine bay in a suitable location away from excessive heat and the battery.
Select and mark the most suitable position for installing the 22mm sensors (not too close to the licence plate and not too low to the ground) into the front bumper (as per the instructions) and drill the 4 holes with a 22mm hole cutting saw. Note: if the bumper is metal, you must insulate the 4 sensors with our optional rubber grommets or similar.
After installing the 4 sensors, run the cables back to the control module and plug in taking note of the correct labelled positions.
Connect the ground wire to the car body/chassis and the power wire to an accessory switched fuse in the fuse box .
Move in to the cabin and find a suitable location for the display unit. First connect the ground wire to the car body/chassis and the power wire to a fused accessory line at the fuse box or behind the cigar lighter .
