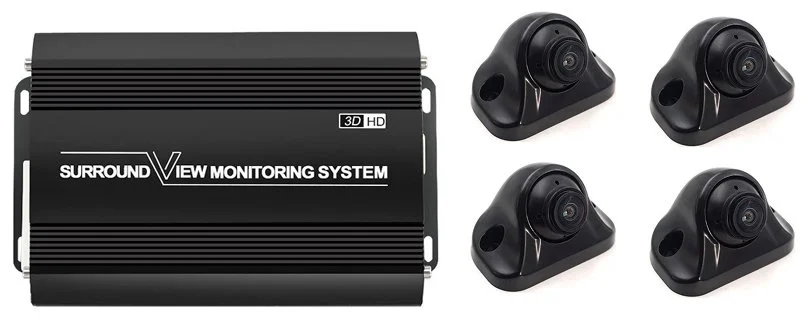

360 BIRDS EYE VIEW COMMERCIAL CAMERA SYSTEM

Custom Designed & FIT for PURPOSE Commercial Camera System

Features all round 360 degree birds eye view with 4-6 Cameras

For complete details contact sales@burgdesign.com.au or phone 03 95559277

3 Years Australian Warranty & Support

Camera No. CM360AVM

Sensor Sony IMX225

Resolution AHD 720P

Color 0.001LUX/F1.2

Viewing angle D 230°, H 220°, V 130°

Connection voltage

Current consumption < 120 mA

Operating temperature temperatur -40 ~ 85 °C

Protection class IP69K

Vibration 10G

Case material Die-cast aluminium

Dimensions 48(B) x 31(H) x 26(T) mm

Weight 150g

Certificates CE, RoHS

Article number AVB-360

Video output AHD 720P, CVBS(NTSC/PAL), VGA(720P60/1080P 30Hz),

HDMI

Camera input 4 xAHD 720P

Camera connection 4pin aviation connector

Camera voltage 5V | 12V internally selectable via dip switch

Start time with ignition on < 12ms (20°)

Image control Automatically via trigger, remote control or button

Trigger signals turn signals, reverse gear,

External button for different view switch

USB | Micro SD input 2.0 max. 128Gb | SDHC max. size micro SD card 1024Gb

DVR (recording) H.264, 1920*1080P@25fps, 5Mbps, 2 Gyte /hr, high speed

read and write U disk / SSD

Power consumption DC 9.5-36V, 9 ~ 10.5W depending on DVR and BSD usage

Operating temperature -30°C ~ +85°C

Storage temperature -40°C ~ +95°C

Dimensions 123(L) x 81(W) x 25(H) mm

Weight 123(L) x 81(W) x 25(H) mm
